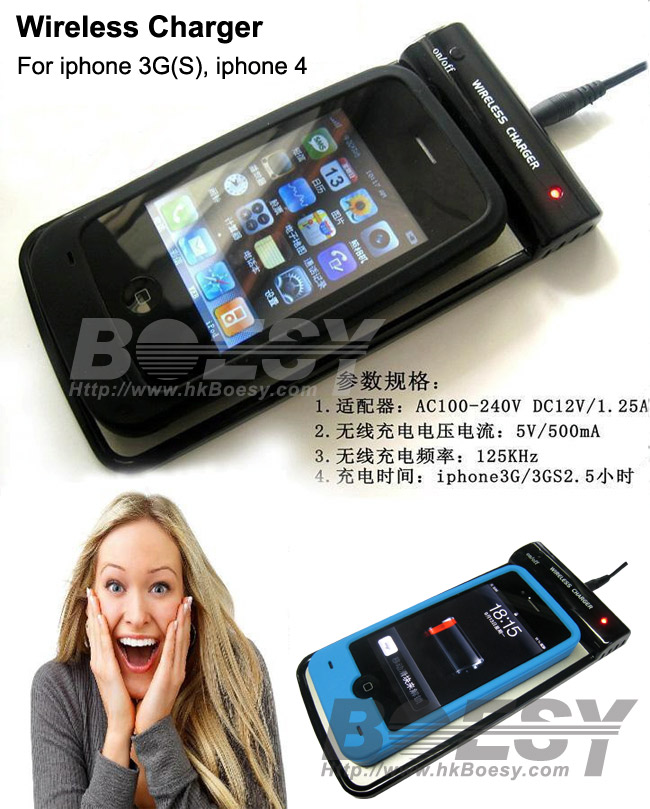

Wireless Charger user manual:

1. Plug AC Adaptor into wall outlet before connect to the charging cradle, a green LED light shows the cradle is ready to charge your device.
2. Turn on the charger by pressing the power button located on the top left side of the charger.
3. Remove receiver from rubber skin, connect it to the phone then fit the phone with the receiver together into the rubber skin
4. Place the phone with receiver part down on the cradle. The LED light will then turn red to indicate the mobile phone is being charged.
5. The LED light will turn green when charging is complete. (During the charging process the LED light will flicker from red to orange as charging is near completion. )
*The power switch will automatically turn off after 30 seconds when the device is removed from the cradle.
*The charging cradle will get warn, this is normal with induction charging.
*For your convenience. Keep the rubber skin with receiver insert on the mobile phone as a normal skin.

SPECIFICATION:

1. Adapter: AC INPUT100-240V. 50-60Hz. DCOUT 12V /1.25A.
2. Wireless Charger voltage and current: 5V/ 500mA
3. Wireless Charger frequency: 125KHz
4. Charger Time: Only Power Station 2 hr More. For iPhone 3G/3GS
5. Charger Physical Dimension: 170mm(L)*84mm(W)*5mm(T)
6. Recieve Cover: 130mm(L)*70mm(W)*16mm(T)
7. Packing Weight and Dimension: 360g 198mm(L)x110mm(W)x78mm(T)
